Patented Soft-Close Frameless Sliding Shower Enclosure | Silent Buffer System | SGCC Certified
SW1STSX807
Frameless/Semi-frameless sliding shower enclosure solution designed for high-end OEM/ODM projects. Features MFMK patented soft-close buffer system and heavy-duty precision rollers for silent closing and durability. Paired with 8/10mm tempered safety glass and full-length magnetic seals for rigidity and superior waterproofing. Hardware uses SUS304/316 stainless steel, available in Black/Brushed finishes, compliant with EU/US standards (SGCC/CE/EN12150). Supports ≤20mm wall adjustment and reversible installation, improving project adaptability and installation efficiency for luxury hotels and high-frequency commercial scenarios.
1. Profile FinishBrushed Black
2. Glass Thickness
3. Glass Technology
Project Efficiency
85%
Maintenance Cost (Lower is Better)
25%

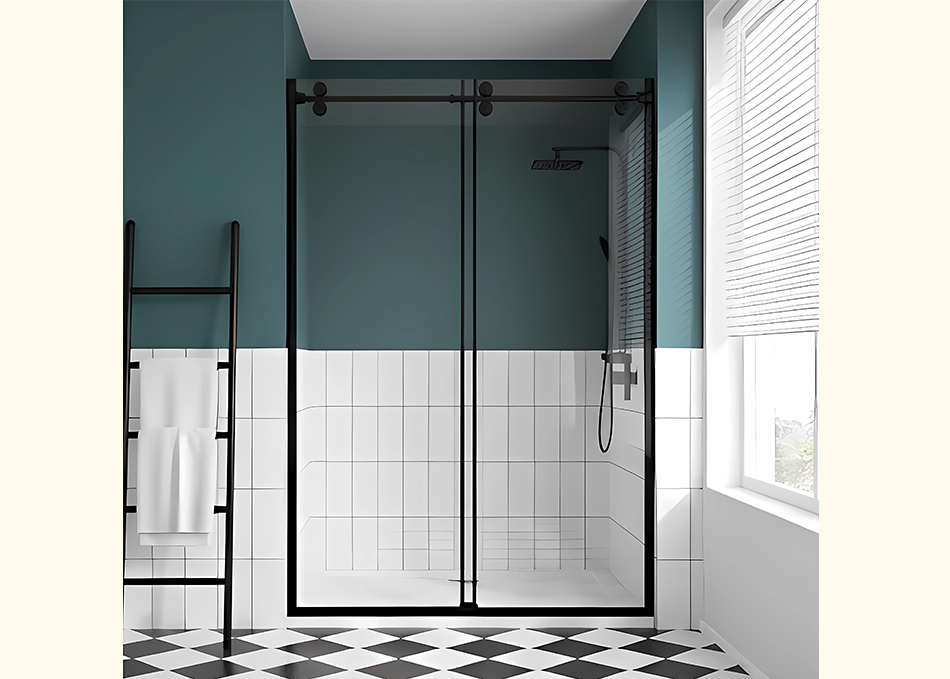

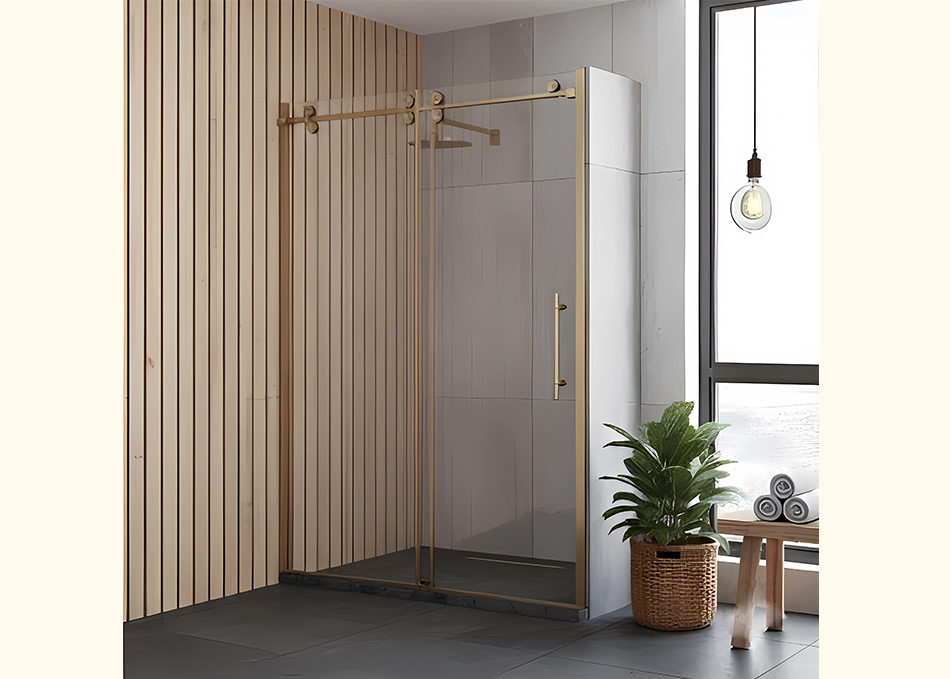

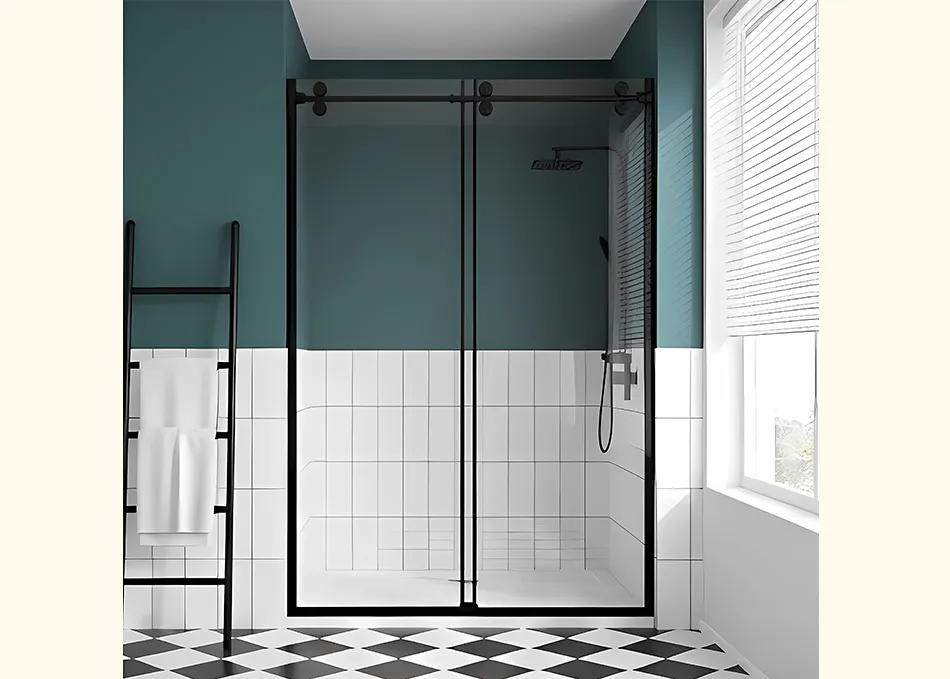

Project Gallery
B2B Engineering Selection Technical Matrix
B2B Solutions & Technical Matrix
Brand & OEM/ODM Support
Supports deep ODM development including control logic and independent structural design.
01
Core Material Solution
SUS304 precision components; reinforced structural system; optimized door assembly.
02
Compliance & Safety Certifications
Compliant with interior door safety norms; patented anti-drop soft-close buffer system.
03
Operating System Logic
Bi-directional hydraulic damping ensures balanced transfer during heavy-door operation.
04
Industrial Design Style
Industrial minimalism with exposed rails and multi-profile functional composition.
05
Engineering Customization Scope
Height up to 2800 mm; width up to 1200 mm; full customization options.
06
Best-fit Applications
Large commercial lobbies, premium clubs, and high-frequency commercial environments.
07
Warranty & Response
Dedicated maintenance package for high-frequency use; consumables replaced within warranty.
08
Downloadable Specifications
Patented Soft-Close Frameless Sliding Shower Enclosure | Silent Buffer System | SGCC Certified - Engineering Data Sheet
Model Series
Soft-Close Series
Core Material
SUS304 Stainless Steel
Glass Standard
ANSI Z97.1 / EN12150
Ref: SGCC
Hardware Tolerance
±0.01mmISO 2768-m
Life Cycle
35,000 Cycles
Ref: EN14428
Product Code
SW1STSL807
Model / SKU
SW1STSX807
Structure Type
Frameless / Semi-Frameless Sliding Door
Core Mechanism
MFMK Patented Soft-Close Buffer System
Roller System
Heavy-Duty Precision Rollers
Glass
8mm / 10mm Tempered Safety Glass
Certifications
SGCC / CE / EN12150
Hardware Material
SUS304 / SUS316 (Black/Brushed Optional)
Sealing
Full-Length Magnetic Seals
Wall Adjustment
≤20mm
Opening Direction
Reversible (Left/Right)
MFMK® Precision Hardware Data
