Key Takeaways
- ANSI Z97.1 is the primary US standard for safety glazing in hazardous locations.
- Category II classification is required for shower doors (400 ft-lbs impact resistance).
- Glass must fragment into small, dull pieces to minimize injury risk upon breakage.
- Compliance is mandated by IBC and IRC building codes for bathroom glazing.
What is ANSI Z97.1?
ANSI Z97.1, officially titled "Safety Glazing Materials used in Buildings - Safety Performance Specifications and Methods of Test," is the primary American standard governing safety glazing in architectural applications. Established by the American National Standards Institute (ANSI), this standard defines the minimum safety requirements for glass and other glazing materials used in hazardous locations, including shower enclosures.
The standard was developed in response to numerous injuries caused by ordinary glass breaking in dangerous patterns. When regular annealed glass breaks, it creates large, sharp shards that can cause severe lacerations. ANSI Z97.1 ensures that glazing materials used in high-risk areas either resist breakage or, if they do break, fragment in a way that minimizes injury risk.
Historical Context: The development of safety glazing standards began in the 1960s after studies showed that glass-related injuries in buildings were a significant public safety concern. ANSI Z97.1 was first published in 1972 and has been regularly updated to reflect advances in glass technology and manufacturing processes.
Impact Testing Requirements
The core of ANSI Z97.1 is its impact testing protocol, which simulates real-world scenarios where people might accidentally collide with glazing materials. The standard defines two categories of safety glazing materials based on their intended use and the level of impact resistance required.
Category I and Category II Classifications
Category I (Lower Impact)
Designed for areas with lower impact risk. Testing involves dropping a 100-pound impactor bag from a height of 12 inches (approximately 100 foot-pounds of energy).
Typical Applications: Interior doors, sidelights, and some partition applications.
Category II (Higher Impact)
Required for high-traffic or high-risk areas. Testing uses the same 100-pound impactor but dropped from 48 inches (approximately 400 foot-pounds of energy).
Typical Applications: Shower enclosures, tub enclosures, and sliding glass doors.
For shower enclosures, Category II testing is typically required due to the wet, slippery conditions and the likelihood of accidental impact. Our premium frameless shower doors use tempered glass that exceeds Category II requirements, providing an additional safety margin.
Fragmentation Pattern Requirements
One of the most critical aspects of ANSI Z97.1 is its specification for how safety glass must break. When tempered glass shatters, it must fragment into small, relatively harmless pieces rather than large, dangerous shards. This characteristic is what makes tempered glass "safety glass."
Particle Size and Distribution
ANSI Z97.1 specifies that when tempered glass breaks, the fragments must meet specific size and distribution criteria:
- •Particle Count: Within any 2-inch by 2-inch square area, there must be a minimum number of particles. For 1/4-inch thick glass, at least 40 particles are required in this area.
- •Maximum Particle Size: No single particle should have an area greater than 1.25 square inches, and the longest dimension of any particle should not exceed 3 inches.
- •Edge Characteristics: Particles should have relatively dull edges compared to annealed glass shards, significantly reducing the risk of deep lacerations.
The Tempering Process
Tempered glass achieves its safety characteristics through a controlled thermal treatment process. Glass is heated to approximately 1,200°F (650°C) and then rapidly cooled using high-pressure air jets. This creates a state of high compression on the surface and tension in the interior, giving tempered glass its strength and characteristic fragmentation pattern.
The surface compression in properly tempered glass typically exceeds 10,000 PSI, making it 4-5 times stronger than annealed glass of the same thickness.
Testing Procedures and Certification
ANSI Z97.1 certification requires comprehensive testing by accredited laboratories. The testing process evaluates both impact resistance and fragmentation characteristics to ensure complete compliance with safety requirements.
Laboratory Testing Protocol
1. Sample Preparation
Test samples must be representative of actual production glass. For tempered glass, samples are taken from regular production runs to ensure testing reflects real-world product quality. Sample size is typically 34 inches by 76 inches, mounted in a test frame that simulates actual installation conditions.
2. Impact Testing
The impactor—a leather bag filled with lead shot weighing 100 pounds—is dropped from the specified height onto the center of the glass panel. The glass must either resist the impact without breaking or, if it breaks, must fragment according to ANSI Z97.1 requirements. Multiple samples are tested to ensure consistent performance.
3. Fragmentation Analysis
If the glass breaks during testing, technicians carefully analyze the fragmentation pattern. They count particles within specified areas, measure maximum particle sizes, and evaluate edge characteristics. All measurements must fall within ANSI Z97.1 specifications for the glass to pass certification.
Building Code Requirements
ANSI Z97.1 is widely referenced in building codes throughout the United States. The International Building Code (IBC) and International Residential Code (IRC) both mandate ANSI Z97.1-compliant safety glazing in specific hazardous locations, including shower enclosures.
According to the IRC, safety glazing is required in the following bathroom locations:
- →Glazing in or adjacent to doors where the bottom edge is less than 60 inches above the walking surface
- →Glazing in walls enclosing bathtubs and showers where the bottom edge is less than 60 inches above the drain
- →Glazing within 60 inches horizontally of the water line of bathtubs, hot tubs, spas, and swimming pools
These requirements ensure that all shower enclosures use safety glazing materials. Our complete line of shower enclosures meets or exceeds these code requirements, providing peace of mind for contractors, architects, and homeowners.
Related Certified Products

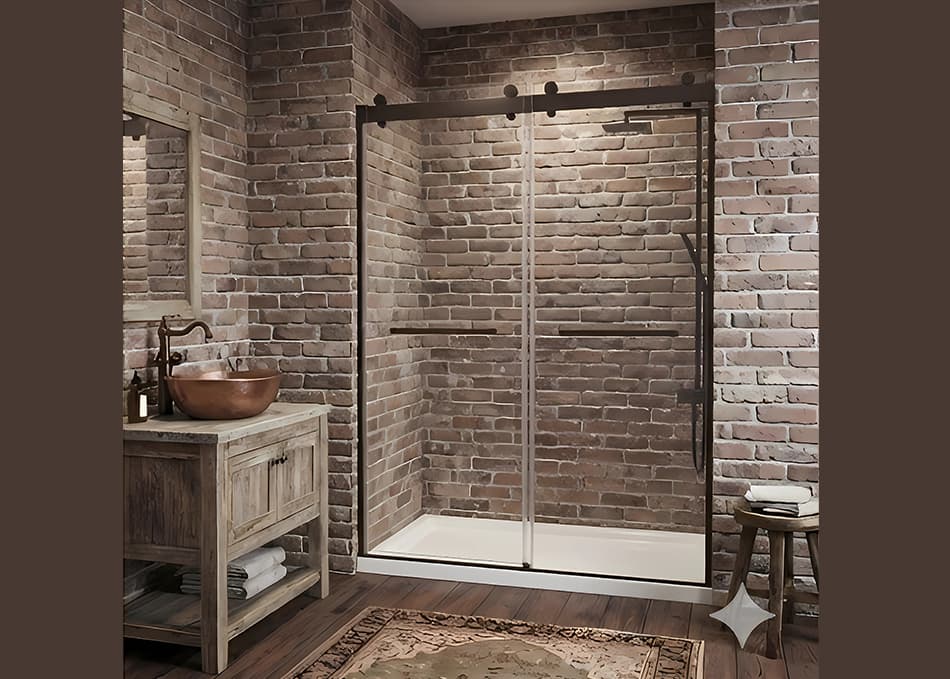

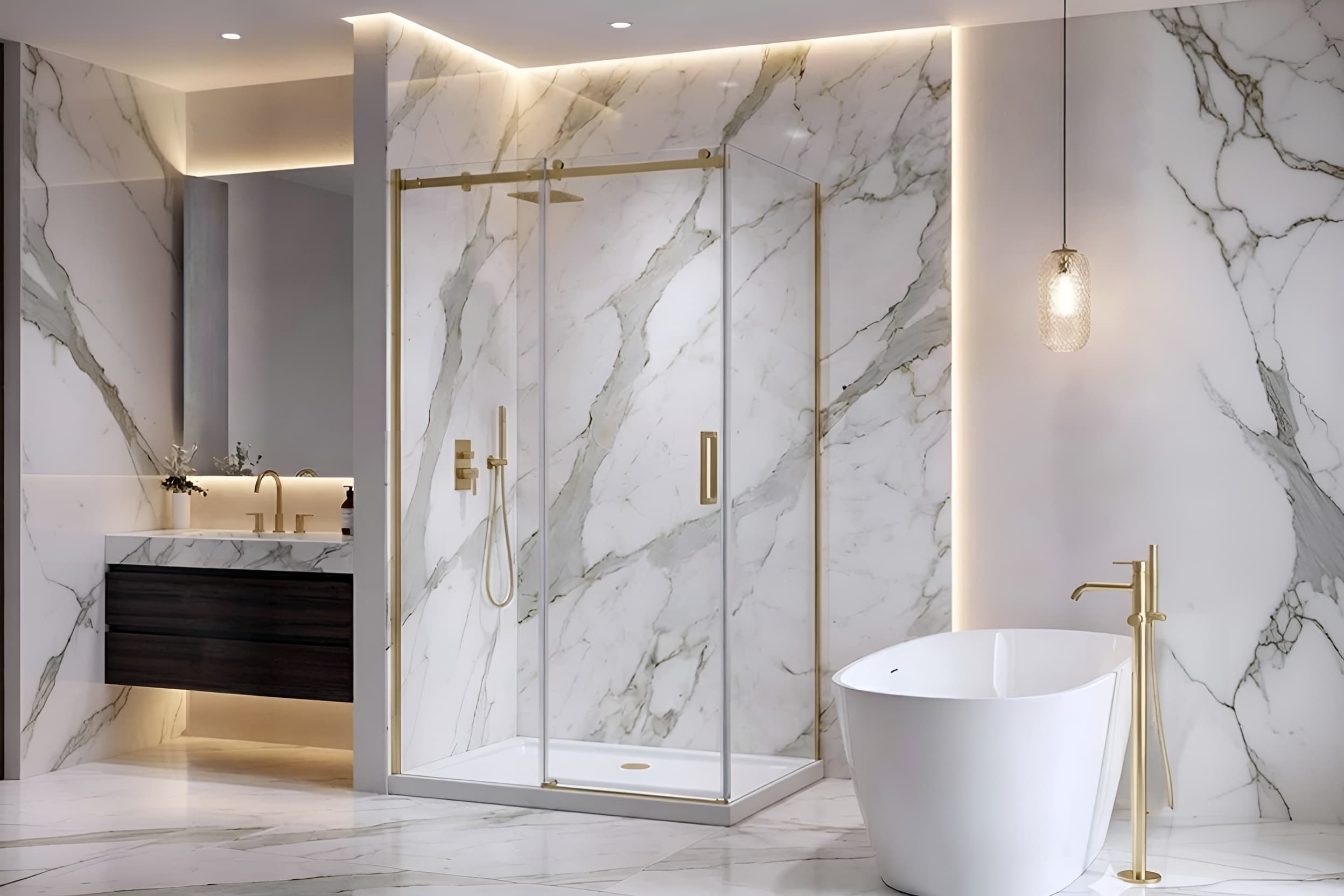

Recommended Enclosures
Frequently Asked Questions
What is the difference between Category I and Category II in ANSI Z97.1?
Category I is for lower-risk areas (100 ft-lbs impact), while Category II is for high-risk areas like shower doors (400 ft-lbs impact). Shower enclosures typically require Category II compliance.
Does ANSI Z97.1 apply to all glass types?
It specifically applies to safety glazing materials, including tempered glass, laminated glass, and safety plastics. Ordinary annealed glass does not meet this standard.
How can I tell if my shower glass is ANSI Z97.1 compliant?
Look for a permanent etched logo or mark on the corner of the glass. This mark usually includes the manufacturer's name, the standard (ANSI Z97.1), and the safety classification (e.g., Cat II).
Is ANSI Z97.1 mandatory by law?
While ANSI is a voluntary standard, it is adopted by major building codes like the IBC and IRC, effectively making it mandatory for hazardous locations like bathrooms in most jurisdictions.
