L2 Square-Tube Sliding Shower System Kit
L2 square-tube sliding shower system kit with illustrated BOM and drawing-number labels (S9 series). Track, rollers, seals, and fasteners listed for procurement and installation planning.
L2 square-tube sliding shower system kit with illustrated BOM and drawing-number labels (S9 series). Track, rollers, seals, and fasteners listed for procurement and installation planning.
Key facts
- Glass
- 8mm
- Load
- Available on request (configuration dependent)
- Test
- Available on request
- Standards
- EN14428 / ISO9001
Quick answers
- Can I buy hardware-only?
- Yes. Choose the hardware kit and source glass locally, or select the finished enclosure for a complete system.
- What glass thickness is supported?
- 8mm (confirm the exact SKU in the selection matrix).
- How do I match the enclosure?
- Use the selection matrix for the correct kit configuration, then verify the finished enclosure drawing and opening size before ordering.
- Specify opening size, glass thickness, and finish to match your configuration.
- Download includes CAD/3D assets, BOM list, and component reference images.
- Typical compatibility: 8mm glass (confirm by variant).
- Applicable standards: EN14428 / ISO9001.
Faster quote: share opening size, glass thickness, finish, and supply mode (finished vs hardware-only).
Switch Perspective

Engineering Selection Matrix
Engineering FAQ
How do I choose the right variant?
Select by opening size, glass thickness, and finish. The selection matrix maps each SKU to a specific configuration and BOM.
What glass thickness is supported?
This kit supports 8mm glass depending on the selected variant. Use the selection matrix to match your opening size and finish.
What does the cycle test mean?
Cycle test indicates endurance testing for repeated sliding operation. This product is tested to Available on request; use it as a durability reference for high-traffic installations.
What is included in the BOM list?
The BOM list enumerates all included parts with quantity and material notes. Use it for procurement, installation planning, and engineering verification.
Which standards are applicable?
This kit is specified against EN14428 / ISO9001. Always verify project requirements and the selected variant specification.
How do I choose the right variant?
Select by opening size, glass thickness, and finish. The selection matrix maps each SKU to a specific configuration and BOM.
What glass thickness is supported?
This kit supports 8mm glass depending on the selected variant. Use the selection matrix to match your opening size and finish.
What does the cycle test mean?
Cycle test indicates endurance testing for repeated sliding operation. This product is tested to Available on request; use it as a durability reference for high-traffic installations.
What is included in the BOM list?
The BOM list enumerates all included parts with quantity and material notes. Use it for procurement, installation planning, and engineering verification.
Which standards are applicable?
This kit is specified against EN14428 / ISO9001. Always verify project requirements and the selected variant specification.
BOM Parts Gallery
S9-HB-02

Sliding Glass Panel
Tempered Glass (No Film) | Clear | L 1990mm | W 850mm | T 8mm
Qty: 1
S9-GB-02

Fixed Glass Panel
Tempered Glass (No Film) | Clear | L 2000mm | W 760mm | T 8mm
Qty: 1
S9-HG-02

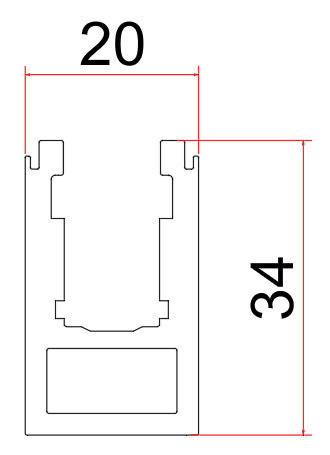

Track
Aluminum Alloy | Polished | L 1525mm
Qty: 1
S9-SGBL-02

Upper Track Stainless Steel Cladding
Stainless Steel | Mirror Polished | L 1525mm
Qty: 1
S9-QL-02

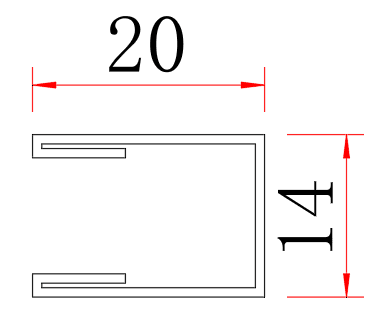

Wall Channel (Universal, L/R)
Stainless Steel | Mirror Polished | L 2000mm
Qty: 1
S9-XDS-02

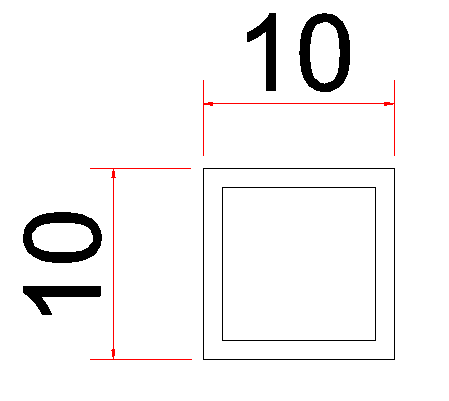

10×10 mm Bottom Water Deflector
Stainless Steel | Mirror Polished | L 785mm
Qty: 1
S9-DG-02

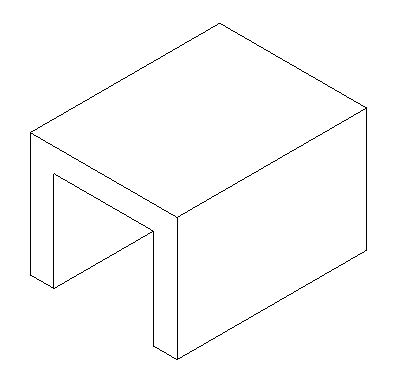

Bottom Deflector End Cap
Stainless Steel | Mirror Polished
Qty: 1
S9-DHL-02

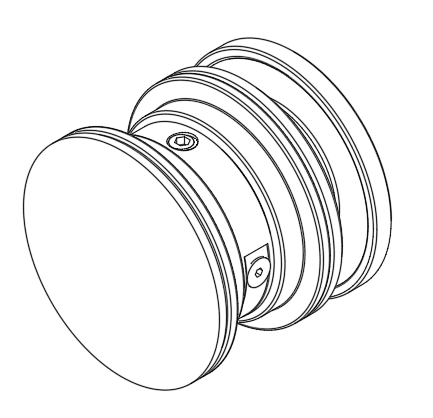

Ø55 Square-Tube Roller (Large)
Stainless Steel | Mirror Polished
Qty: 2
S9-GBGDJ-02

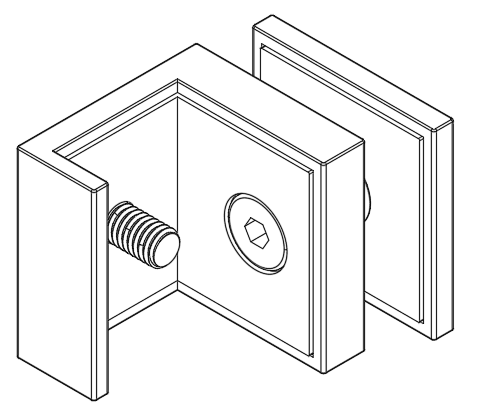

Ø55 Square-Tube Roller (Large) Fixed Glass Panel Mount
Stainless Steel | Mirror Polished
Qty: 1
S9-QT-02

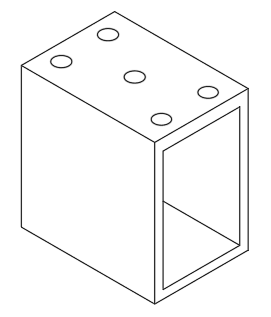

Ø55 Square-Tube Roller (Large) Wall Sleeve
Stainless Steel | Mirror Polished
Qty: 2
S9-XHK-02

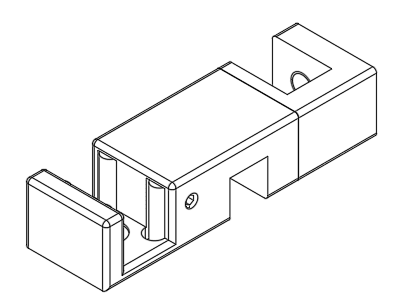

Bottom Guide Block
Stainless Steel | Mirror Polished
Qty: 1
S9-HCQ-02

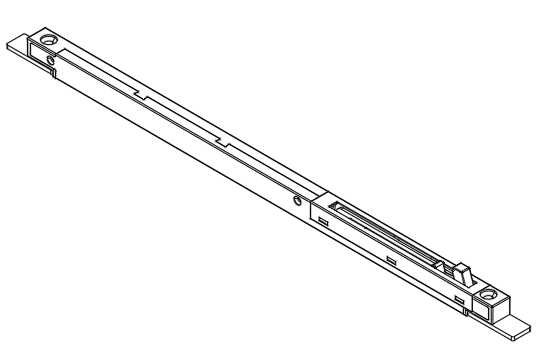

Soft-Close Buffer
Stainless Steel | Natural
Qty: 2
S9-RQPJT-02

Soft Bubble Seal Strip
PO/PE/PVC | Natural | L 2000mm
Qty: 2
S9-DSJT-02

Soft Bubble Water Seal Strip
PO/PE/PVC | Natural | L 2000mm
Qty: 1
S9-DBJT-02

Single-Side Seal Strip
PO/PE/PVC | Mirror Polished | L 2000mm
Qty: 1
Part 16

Vertical Pull Handle
Stainless Steel | Mirror Polished | L 900mm
Qty: 1
Part 17

Phillips Countersunk Screw
Stainless Steel | Natural | ST4×35
Qty: 6
Part 18

Nylon Expansion Plug
Nylon | Green | M6×25
Qty: 6
Full Specifications
Review the parts gallery first. Specifications below summarize compatibility, performance, and compliance for the selected SKU.
- Glass Compatibility
- 8mm
- Rated Load
- Available on request (configuration dependent)
- Cycle Test
- Available on request
- Primary Materials
- SUS304 / Stainless Steel / Aluminum Alloy / Tempered Glass / PO-PE-PVC
- Compliance Standards
- EN14428 / ISO9001
Hardware-only procurement is available. Glass panels can be sourced locally.
Bill of Materials - L2-SQUARE-TUBE-1550x2000-8MM
Sliding Glass Panel
1 unitTempered Glass (No Film) | Clear | L 1990mm | W 850mm | T 8mm
Fixed Glass Panel
1 unitTempered Glass (No Film) | Clear | L 2000mm | W 760mm | T 8mm
Track
1 unitAluminum Alloy | Polished | L 1525mm
Upper Track Stainless Steel Cladding
1 unitStainless Steel | Mirror Polished | L 1525mm
Wall Channel (Universal, L/R)
1 unitStainless Steel | Mirror Polished | L 2000mm
10×10 mm Bottom Water Deflector
1 unitStainless Steel | Mirror Polished | L 785mm
Bottom Deflector End Cap
1 unitStainless Steel | Mirror Polished
Ø55 Square-Tube Roller (Large)
2 unitsStainless Steel | Mirror Polished
Ø55 Square-Tube Roller (Large) Fixed Glass Panel Mount
1 unitStainless Steel | Mirror Polished
Ø55 Square-Tube Roller (Large) Wall Sleeve
2 unitsStainless Steel | Mirror Polished
Bottom Guide Block
1 unitStainless Steel | Mirror Polished
Soft-Close Buffer
2 unitsStainless Steel | Natural
Soft Bubble Seal Strip
2 unitsPO/PE/PVC | Natural | L 2000mm
Soft Bubble Water Seal Strip
1 unitPO/PE/PVC | Natural | L 2000mm
Single-Side Seal Strip
1 unitPO/PE/PVC | Mirror Polished | L 2000mm
Vertical Pull Handle
1 unitStainless Steel | Mirror Polished | L 900mm
Phillips Countersunk Screw
6 unitsStainless Steel | Natural | ST4×35
Nylon Expansion Plug
6 unitsNylon | Green | M6×25
MFMK® Precision Hardware Data
